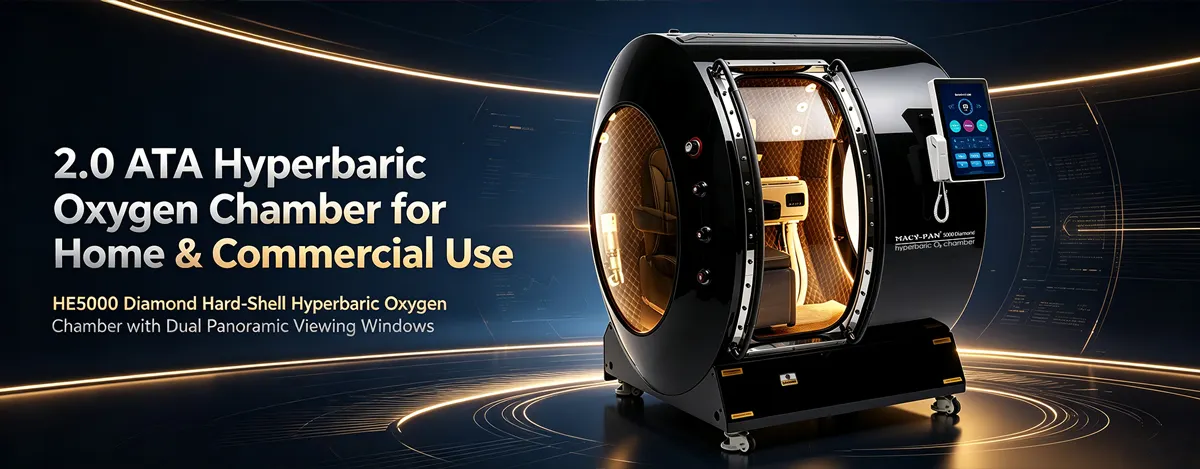

2.0 ATA Hyperbaric Oxygen Chamber for Home & Commercial Use
Hard-Shell Hyperbaric Oxygen Chamber with Dual Panoramic Viewing Windows
The HE5000 Diamond is a premium 2.0 ATA hard-shell hyperbaric oxygen chamber designed for private home wellness spaces and professional commercial environments.
Featuring a medical-grade SUS304 stainless steel chamber structure, two large side viewing windows, a full-view transparent door, flexible Monocoque and Modular configurations, and customizable interior options, the HE5000 Diamond combines a high-pressure chamber platform with an open and premium interior design.
It can be configured for homes, beauty salons, spas, wellness centers, gyms, hotels, and other professional wellness environments.
Maximum Working Pressure: 2.0 ATA / 2 Bar
Structure Options: Monocoque / Modular
Seating Options: Single Reclining Chair / Dual Seating
Features of HE5000 Diamond 2.0 ATA Hyperbaric Oxygen Chamber for Home & Commercial Use
The HE5000 Diamond combines a 2.0 ATA hard-shell structure, panoramic visibility, flexible installation options, and customizable interior configurations in one premium hyperbaric oxygen chamber.
2.0 ATA Hard-Shell Construction
Maximum working pressure of 2.0 ATA / 2 Bar, with a medical-grade SUS304 stainless steel chamber structure.
Dual Panoramic Viewing Windows
Two large transparent viewing windows provide a wide outward view and create an open visual environment.
Full-View Transparent Door
The wide transparent door enhances visibility and maintains clear visual contact between the occupant and the surrounding space.
Monocoque or Modular Structure
Choose a unified Monocoque structure for permanent installations or a Modular configuration for locations where transportation and access require greater flexibility.
Single or Dual Seating
Configure the interior with a premium reclining chair or side-by-side seating according to the intended application.
Premium Interior Customization
Choose from different upholstery, lighting, audio-visual, and interior configuration options.
Dual Panoramic Viewing Windows for a More Open Interior
The signature visual feature of the HE5000 Diamond is its combination of two large side viewing windows and a full-view transparent door.
Instead of a visually enclosed chamber design, the HE5000 Diamond creates a more open connection between the interior and surrounding environment.
Two Large Side Viewing Windows
Two expansive transparent windows are positioned on both sides of the chamber, providing a wide outward view.
The optically clear construction allows natural light into the chamber and enhances the sense of visual openness.
Full-View Transparent Door
The transparent door complements the side viewing windows and further expands the visual field from inside the chamber.
It also allows clear visual contact from outside the chamber.
Designed for Modern Wellness Environments
The open visual design allows the HE5000 Diamond to integrate naturally into modern residential and commercial wellness interiors.
For spas, beauty salons, hotels, and wellness centers, the chamber can become part of the overall interior environment rather than appearing as a visually isolated piece of equipment.
2.0 ATA Hard-Shell Hyperbaric Oxygen Chamber
The HE5000 Diamond is engineered around a maximum working pressure of 2.0 ATA / 2 Bar.
Its chamber structure combines medical-grade SUS304 stainless steel with high-strength polycarbonate components for the transparent door and viewing windows.
2.0 ATA Maximum Working Pressure
Maximum Working Pressure: 2.0 ATA / 2 Bar
The 2.0 ATA platform makes the HE5000 Diamond an option for customers looking for a high-pressure hard-shell hyperbaric oxygen chamber for private or professional environments.
High-Strength Transparent Components
The chamber door and viewing windows use high-strength polycarbonate with high transparency and impact-resistant properties.
Controlled Oxygen Supply
The oxygen supply system features:
-
- Oxygen Supply Pressure: 0 ATA / 4 Bar
- Oxygen Supply Flow: 20 L/min
- Oxygen Supply Purity: 93% ± 3%
- Internal Chamber Oxygen Concentration: ≤23.5%
Details of HE5000 Diamond 2.0 ATA Hyperbaric Oxygen Chamber for Home & Commercial Use

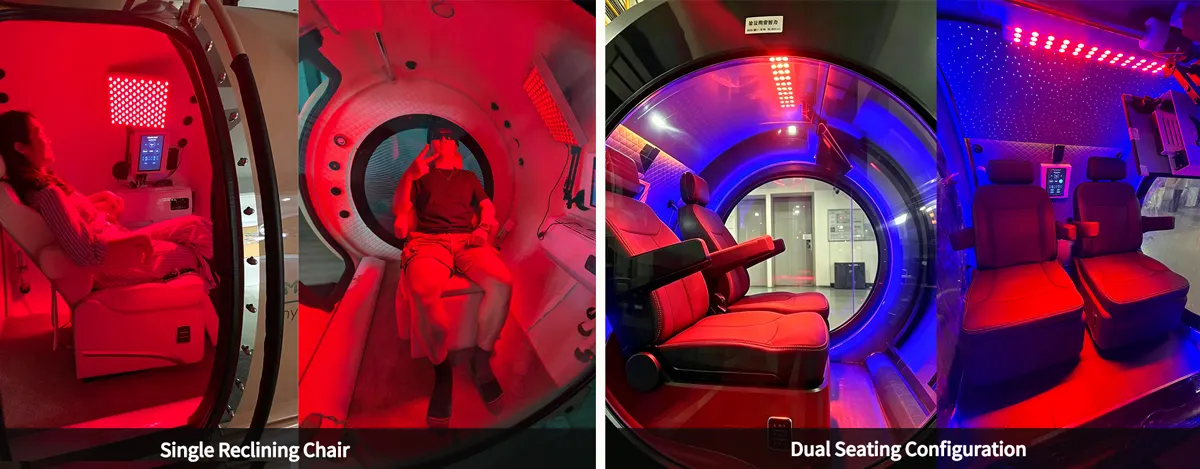

Flexible Interior and Seating Configurations
The HE5000 Diamond offers two seating configurations to accommodate different personal and commercial applications.
Single Reclining Chair
The single-seat configuration features a premium 360-degree rotating reclining chair with adjustable backrest and foot support.
This configuration is suitable for individual-use environments, including:
- Home wellness spaces
- Private wellness rooms
- Individual sessions
- Premium spa environments
- Professional wellness facilities
Dual Seating Configuration
The dual configuration features a side-by-side bench seat.
It can be considered for:
- Couples
- Family members
- Accompanied sessions
- Hospitality environments
- Commercial wellness facilities
Premium Upholstery Options
The interior can be customized with:
- Vegan leather
- Premium medical fabric
- Ocean Blue
- Serene Grey
- Pure White

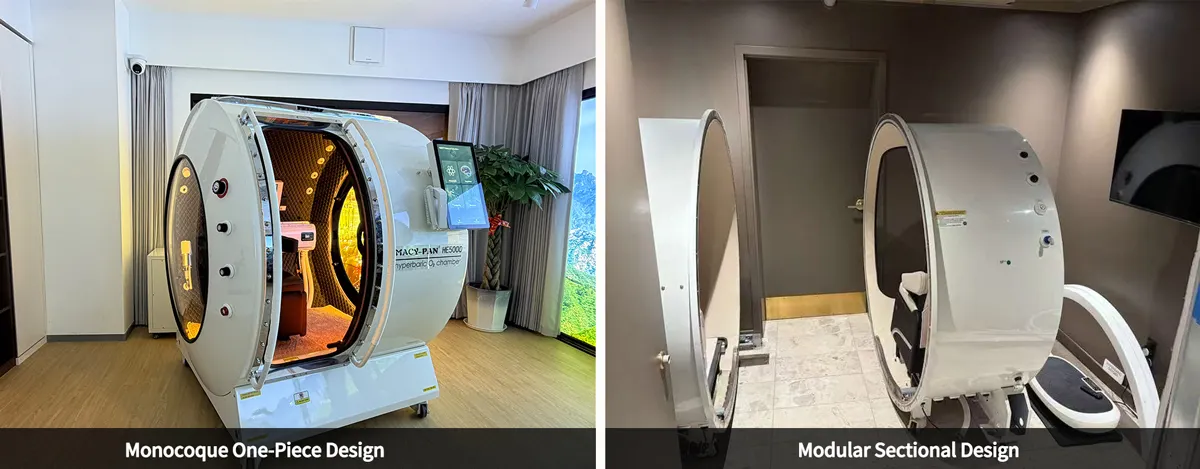

Monocoque or Modular: Choose the Right Chamber Structure
The HE5000 Diamond is available in two structural configurations to accommodate different building conditions and installation requirements.
Monocoque One-Piece Design
The Monocoque configuration uses a unified one-piece chamber structure.
Key characteristics include:
- One-piece construction
- Streamlined exterior appearance
- Integrated structural design
- Premium visual presentation
- Suitable for spacious permanent installations
Modular Sectional Design
The Modular configuration consists of connectable chamber sections designed to simplify transportation and installation.
The sectional structure can be transported through:
- Standard doorways
- Corridors
- Staircases
- Elevators
The sections can then be assembled at the final installation location.
The Modular configuration can be particularly useful for:
- Residential buildings
- Home wellness rooms
- Beauty salons
- Spas
- Wellness centers
- Athletic facilities
Premium Interior Customization
The HE5000 Diamond can be customized according to different facility designs and user preferences.
Upholstery Options
Choose from:
- Vegan leather
- Premium medical fabric
- Ocean Blue
- Serene Grey
- Pure White
Ambient and Chromotherapy Lighting
Optional chromotherapy LED lighting can be integrated alongside the standard interior lighting system.
Audio-Visual Package
Optional equipment includes:
- Integrated media screen
- Premium noise-canceling headphones
Hyperbaric Office Configuration
For users who want to read or work during a session, an optional office configuration can include desks and rotating chairs.
Specification of HE5000 Diamond 2.0 ATA Hyperbaric Oxygen Chamber for Home & Commercial Use
| Product Accessories--MACYPAN HE5000 Diamond 2.0 ATA Hyperbaric Oxygen Chamber for Home & Commercial Use | ||
|---|---|---|
| Product Accessories | 1、Chamber Cabin
2、Oxygen Supply System 3、Pressure System 4、Electrical System |
|
| Certifications/Compliance Standards | ASME PVHO,CE, ISO9001,ISO13485 | |
| Accessory Machine Parameters--MACYPAN HE5000 Diamond 2.0 ATA Hyperbaric Oxygen Chamber for Home & Commercial Use | |||
|---|---|---|---|
| Chamber Cabin | Dimensions（L*W*H） | L175*W160*H145cm (±10mm) | |
| Door Size（L*H） | 47cm*108cm(±10mm) | ||
| Net Weight | 575kg | ||
| Pressure | 1.5-2.0ATA(100KPA) | ||
| Capacity | 1-2people | ||
| Material | Stainless Steel+ Polycarbonate | ||
| Movable Wheels | √ | ||
| Oxygen Supply System | Oxygen Supply Pressure | 4.0 ATA / 4 Bar | |
| Oxygen Supply Flow | 20 L/Min | ||
| Oxygen Supply Purity | 93% ± 3% | ||
| Internal Chamber Oxygen Concentration | ≤ 23.5% (Safe Oxygen-Rich Environment) | ||
| Pressure System | Maximum Working Pressure | 2.0 ATA / 2 Bar | |
| Emergency Depressurization Rate | From 2.0 ATA to 1.0 ATA ≤ 60 seconds | ||
| Ventilation Rate | ≥ 140 L/Min | ||
Electrical System |
Air Compressor Power | 520 W | |
| Oxygen Generator Power | 1600 W | ||
| Air Conditioner Power | 900 W | ||
| Voltage | 220V/50Hz 110V/60Hz | ||
Video of HE5000 Diamond 2.0 ATA Hyperbaric Oxygen Chamber for Home & Commercial Use
